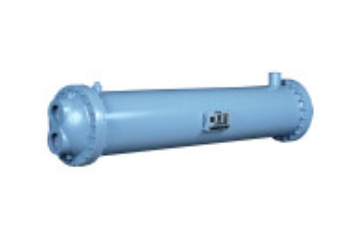

5F and 09RH Water-cooled Condensers :

Carrier Transicold 5F and 09RH water-cooled condensers help provide Comfortable air conditioning for your crew or refrigeration for your cargo Wherever you're bound.

Refrigerants : 134A, 404A, 407C

Cooling Capacities : 5-200 tons ( 17.6-703.4 kW )

Features : Choose 5F for small load applications, 09RH for medium to heavy Loads. Non-ferrous integral finned tubes. Bell mouth ends. Removable heads on Shell-and-tube models. Spring-loaded pressure relief valves or frangible discs as Safety devices. Models 5F20 and 30:90/10 copper-nickel tubes, steel shell. Models 5F40, 5F60, and 09RH: 90/10 copper-nickel tubes and tube sheets. Double liquid outlet drains. 09RH shown.

30HXC Screw Chiller :

Multiple Semi-hermetic Screw Compressors Controls Dual Refrigerant Circuits

30HXA : shell & tube evap - remote cond.

30HXC : shell & tube evap - 90/10 Cu/Ni shell & tube cond.

Features :

• Common platform 70 to 265 tons
• Dual circuit, HFC-134a
• Marine condenser with 90/10 Cu/Ni tubes and tubesheets and cast bronze heads
• NEMA 4/4X Enclosures for main control box, compressor junction boxes, and pressure sensors
• Built-in dual chiller control
• Isolation valves standard
• Factory installed flow switch standard
• Oil pump ensures compressor lubrication (start & low lift)
• Leaving temp set point resolution of 0.1F
• EXV re-calibrates with every start.
• Wye-Delta or XL start
• Fits anywhere, very compact in size, in fact its the Narrowest chiller in its class.

19XR Centrifugal Chillers :

High capacity and Maximum Efficiency with R-22 and R134 a refrigerants Most technologically advanced centrifugal chillers for shipboard duty. Compact modular design, high efficiency, trouble free operation, and a choice of environmentally responsive refrigerants add to the exceptional versatility of every carrier 90 XR Chiller.

Superior quality and reliability for long-life operation.

High performance, high efficiency.

High capacity, 200 to 520 ton (700 to 1,830 kW).

Semi-hermetic design for maximum system reliability.

Automatic self diagnostic operation for safety and easier servicing.

Small footprint Up to 35% more compact than conventional chillers.

Microprocessor controls maximize unattended unit operation. Simplified integration with ship's control systems. Compatible with carrier advanced air-quality improvement product, such as heat recovery devices and smoke and fume filtration systems.

Modular design facilitates chiller disassembly/reassembly for installation in extremely tight spaces. Ideal for ship retrofit programs.

Worldwide service and parts support.

30GT, GN, GX Air-cooled Reciprocating Liquid Chilling Packages :

Floating drydocks, oil rigs, and inter-coastal vessels which require air Conditioning on board demand an economical 30G. All units offer significant Cost-saving advantages at installation, over years of operation, and reduce service and maintenance costs too. Choose from many economical sizes, ranging from 15-420 tons ( 52.7-1, 477 kW )

30GT

Refrigerant : 134

Cooling Capacities : 15-420 tons ( 52.7-1, 477 kW )

Features : Completely factory wired, assembled and charged. Easy access to Compressor, cooler. Suction cutoff unloaders. 30GT units use the Carrier Flotronic control system. Marine copper condenser coils available

30GT

Refrigerant : 134

Cooling Capacities : 40-420 tons ( 140.6-1,477 kW )

Features : Easy access to components. Standby protection. Compressor crankcase Heaters. All 30GN units use the Carrier “Flotronic™ II” control system.

30GX

Refrigerant : 134a

Cooling Capacities : 80-175 tons ( 281.3-615.3 kW )

Features : 30GX uses the Flotronic II control system. Multiple screw compressors use R-134a. Marine copper condenser coils available.

90 Y "Sea Horse" packaged marine Condensing Units :

Available in a wide range of capacities, the 90 YF, YH include marine condenser, motor and control panel all in a single, factory-assembled unit.

Refrigerants : 134A

Capacities : 0.94 -135 tons (3.3-474.7 kW)

Features : Utilizes a full line of compressors with internal capacity control and pressure lubrication. Quiet operation. Oil pressure safety switch. Contactors and overload protection. Refrigerant suction and discharge gauges. Oil pressure gauge. Single pump-out control. Time-guard circuit. Crankcase heater relay. Across-the-line starting. Marine construction throughout 90YK shown.

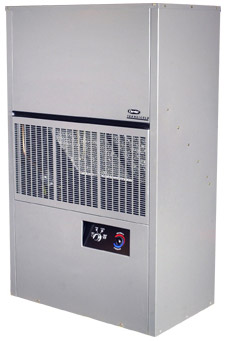

90 MA Single-package Marine Cooling Units :

Available in four sizes (004-012), the 90 MA cools, heats, dehumidfies, and filters.

Refrigerants : 134A

Cooling : 3-10 tons (10.6-35.2 kW)

Heating : 7.9-24.7 kW

Features : Seawater cooled. Quiet, high capacity fans accessory plenum for free-blow system. Heavy gauge galvanized steel cabinet. Easy-to-remove panels for simple maintenance. Low cost installation. Tube-in-tube condenser of 90/10 coppernickel. Permanent cleanable filters, double drains and seawater regulating valve are standard.

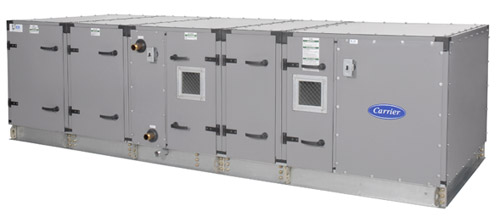

39MN :

Available in a wide range of blow-thru and draw-thru arrangements and constructed for long life and top performance in large heating and cooling applications.

Refrigerants : 134A, 407C

Cooling / Heating Coils : Chilled Water, Direct Expansion, Hot Water, Steam.

Capacities : 1,000-55,000 cfm ( 478-25,960 L/s )

39G :

Available in a wide range of blow-thru and draw-thru arrangements and constructed for long life and top performance in large heating and cooling applications.

Refrigerants : 134A, 407C

Cooling / Heating Coils : Chilled Water, Direct Expansion, Hot Water, Steam.

Capacities : 1,000-55,000 cfm ( 478-25,960 L/s )

39L, 39N, 39T Central Station Air-handling Units :

Available in a wide range of blow-thru and draw-thru arrangements and constructed for long life and top performance in large heating and cooling applications.

Refrigerants : 134A, 407C

Cooling / Heating Coils : Chilled Water, Direct Expansion, Hot Water, Steam.

Capacities : 1,000-55,000 cfm ( 478-25,960 L/s )

40 RU Direct Expansion Fan-Coil Units :

For conditioned air wherever crew or passengers require it. Units may be deck Mounted or suspended overhead.

Refrigerants : 134A

Capacities : 6-30 tons ( 21.1-105.5 kW ) Coupled with appropriate condensing units, 40RM units will produce nominal cooling capacities of 6 to 30 tons ( 21.1-105.5 kW ).

Features : Belt-drive centrifugal fans. Insulated casing. Adaptable to heat pump services ( 7.5, 10, and 15 ton sizes only ). Accessory electric heaters available up to 70 kW. Accessory hot water or steam coils available up to 950,000 Btuh ( 278 kW ). Mariner double drains available. Marine copper evaporator coil and double drains available.

42 D Ducted Fan-Coil Unit :

Capacities : 600-2,000 cfm ( 283.1-943.8 L/s )

Features : Heavy gage galvanized steel. Uses minimum space. Quiet operation. Fully insulated cabinet to muffle noise sound direct - drive, forward - curved fan. Easy access. Insulated condensate pans. Select 3,4,5 or 6 row coils. For 2,3 or 4-pipe system. 42D shown

42B System Fan-Coil Unit :

Capacities : 800-4,000 cfm ( 377.5-1, 887.6 L/s )

Features : Heavy gage cold rolled or galvanized steel. Removable side panels. Fully insulated to muffle noise and prevent sweating. Belt-driven, adjustable motor. Single or 3-phase motors standard from 1/6 to 2 hp ( .124 to 1.49 kW ). Select 4 or 6 row cooling coils. Forward-curved, centrifugal, double-inlet fan wheels.

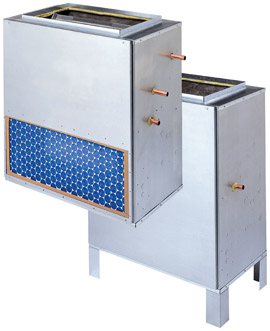

42V, C Room Fan-Coil Units :

Capacities : 150-1, 200 cfm ( 70.8-66.3 L/s )

Features : 42V is vertical, 42C horizontal. Cabinet or furred-in units. Numerous control systems. Select up to 5 row coils. For 2, 3, or 4-pipe system. Quiet operation. Low fan speed. Uses minimum space. Available with 3-row DX coil (R134, R404), sheathed electric heaters, double drains, and special-design drain pans. 42V shown

Performance :

Ranges from 500m3/hr to 250000m3/hr and static pressure up to 125mm.

Accessories :

• Mounting Feet
• Wire Guards
• Anti-Vibration Mountings
• Sound Attenuators

Performance :

Ranges from 100m3/hr to 3000m3/hr

Availability :

Insulated or non-insulated.
